 Spindle Shaper |
 |
|
 |

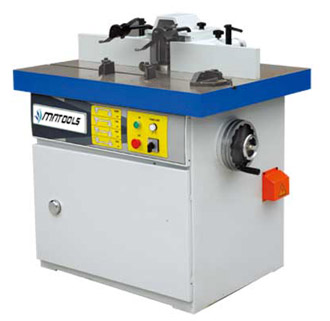

| MTMX5117 |
|

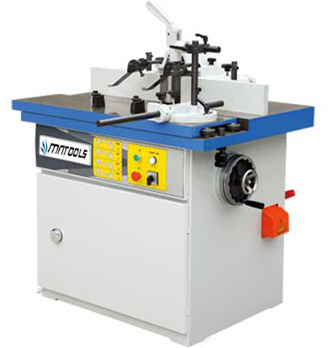

MTMX5117H |
 |
|
 |

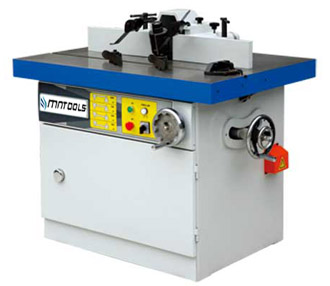

| MTMXQ5117 |
|

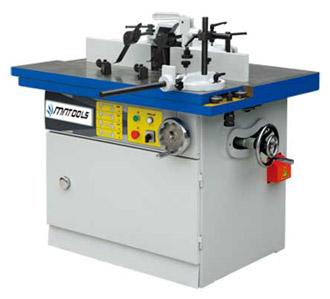

MTMXQ5117H |
|
| |
Model |
MTMX5117 |
MTMX5117H |
MTMXQ5117 |
MTMXQ5117H |
Spindle Dia. |
19mm(3/4"), 25.4mm(1"), 30mm(1-1/4") |
Spindle Speed |
3000/ 4500/ 7500/ 10000RPM |
Tape of spindle |
7:24 |
7:24 |
7:24 |
7:24 |
Spindle motor |
4kw |
4kw |
4kw |
4kw |
Spindle stroke |
130mm |
130mm |
130mm |
130mm |
Tilting angle |
|
|
-5° ~90° ~+45° |
-5° ~90° ~+45° |
Max.table insert Dia. |
φ250mm |
φ250mm |
φ250mm |
φ250mm |
Table size(LxW) |
1000x750mm |
1000x750mm |
1000x750mm |
1000x750mm |
Sliding table size |
|
1000x280mm |
|
1000x280mm |
Sliding table travel |
|
930mm |
|
930mm |
Net weight |
775kgs |
730kgs |
775kgs |
730kgs |
Overall size |
1000x750x1130mm |
1000x750x1130mm |
1000x920x1130mm |
1000x920x1130mm |
|
|
